The video camera option for SPS sorption systems enables visual monitoring of samples during sorption measurements. By capturing images at different relative humidities, moisture-induced changes such as color alterations, crystallization, or crack formation can be documented.
The video camera is only compatible with SPS11-10μ, SPSx-1μ-High-Load, and SPSx-1μ-Advance.
- Integrated Ring Light
- Software Integration
- Image Labeling
- Easy Retrofitting
-
Integrated Ring Light
Ensures uniform illumination and high-contrast images without sample heating.
-
Full Software Integration
The camera is controlled via the SPS software. Through the camera menu, the user can select which samples should be recorded.
-
Image Annotation
Automatic overlay of measurement data into recordings for improved documentation.
-
Easy Retrofitting
Compatible with existing SPS systems for a straightforward expansion.
Video Camera Option
Sensormount

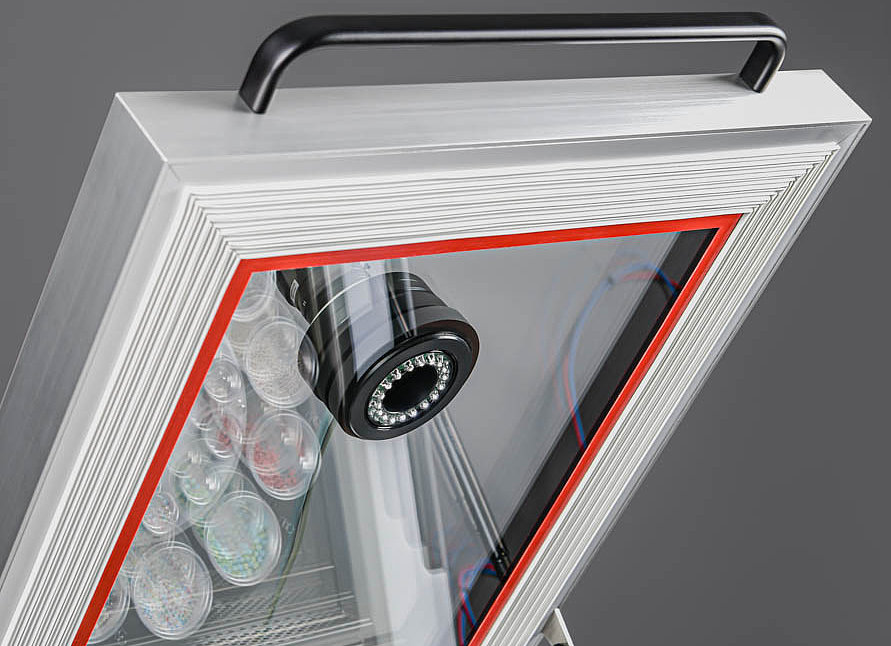

The sensormount in the glass cover of the SPS vapor sorption analyzer enables the attachment of a video camera to the instrument. Image acquisition during a sorption analysis is a valuable tool for the documentation of visual changes to the samples at different relative humidity levels.
In-line Humidity Validation
Some examples for applications in food and material research are:
- Color changes
- Crystallization
- Sintering and viscous flow
- Structural changes (e.g. cracks)
- Swelling and deformation
- Liquefaction and solidification
Integrated Ring Light
An integrated LED ring light provides uniform and high-contrast illumination. To avoid heating of samples, the ring light is only switched on for the very short period of time for image acquisition.
Full Software Integration
The camera is triggered via the SPS software. A menu allows to select from which samples images shall be acquired and when. Events for triggering the image acquisition can be the achievement of the equilibrium state or a fixed time interval for example.
Image Labeling
The software allows to supplement the acquired images directly with the corresponding measurement data. If image processing subsequent to the sorption analysis requires images without any labels, this option can be switched off.
