The MHG100 is a modular humidity generator designed for precise control of relative humidity in larger measurement chambers and open systems with higher gas flow rates up to 15l/min.
- High flow rate
- Wide humidity range
- Modular design
- Optional cooling
-

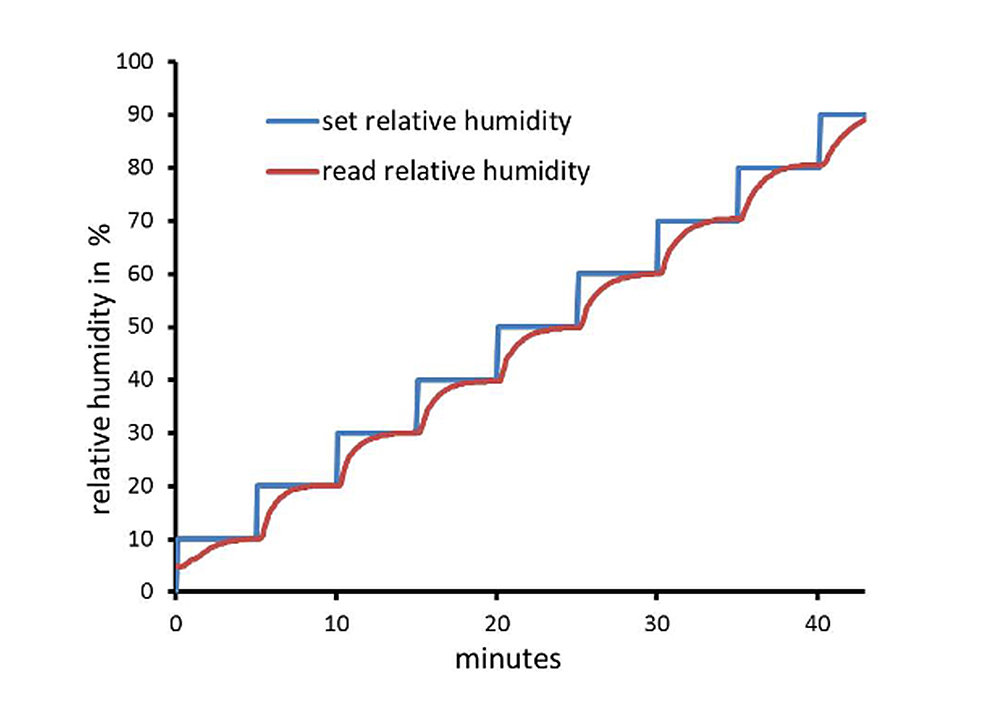

Fast and Accurate Humidity Regulation
Closed loop regulation with very short response times.
-
Fits a Wide Range of Applications and Test Environments
Dynamic flow rates and variable control parameters for perfect adaptability to your target system.
-
Wide Temperature and Humidity Range
Integrated heating and cooling concept
-
Maintenance Free Operation
No regular service needed.
Click “Activate” to view the content. Please note that after activation, data will be transmitted to YouTube.
More information
MHG100 – Powerful Humidity Control
Modular Humidity Generator for Flexible System Integration
The MHG100 provides a maximum flow rate of 15 l/min which is suitable for humidity control for chamber volumes up to 100 l. The modular setup with symmetrical gas supply in two lines and the wide temperature and humidity range make the MHG100 a perfect match for the most diverse target systems. As an OEM product, the MHG100 can be easily integrated into any instrument setup.
System Architecture
The heart of the MHG100 is a high-performance central humidification and mixing unit. It delivers constant gas flow with controlled humidity. Humidity regulation is achieved by varying the proportions of dry and saturated gas.
Wide Temperature and Humidity Range
The temperature in the MHG100 mixing system can be adjusted manually or automatically via an algorithm to match the conditions in the target system. The MHG100 can be operated in the range of 5 °C to 75 °C. Humidity control is available over the full range from dry supply gas to full saturation. The compact but powerful MHG100 provides very high flow rates even at high temperature and high humidity.
- Heated Supply Lines
Temperature control in the supply lines includes an automated or manually configured temperature offset. Humidity control up to the saturation level is ensured even at very high temperatures without any risk of condensation in the supply lines.
- Cooling Option
A cooling circulation thermostat can be connected to the MHG100, allowing for operation at temperatures below room temperature down to just above the freezing point.
Customization
The MHG32 can be operated locally via the front panel or by remote control via RS232 or Ethernet. The Modbus software interface is fully configurable and allows for complete integration into the control software of the target system.
- Humidity Sensor
The sensor interface is fully configurable. Any sensor with an analogue signal output can be connected.
- Opertion & Software Interface
The MHG100 can be operated locally via the front panel or by remote control via RS232 or Ethernet. The software interface is fully configurable and allows for complete integration into the control software of the target system.
- Additional Option
- Miniaturized T/RH sensor for tiny volumes and narrow spaces
- Sensor antechamber for systems that do not allow to place the humidity sensor inside the target volume
* The minimum achievable humidity depends on the water content of the carrier gas. Deviation data based on Rotronic HC2A-S sensor.
** External heating / cooling can be adapted by the customer. Temperature range: Min. 2 °C to Max. 95 °C.
*** Other gases on request. By default, flow controllers are calibrated to air as the carrier gas.
